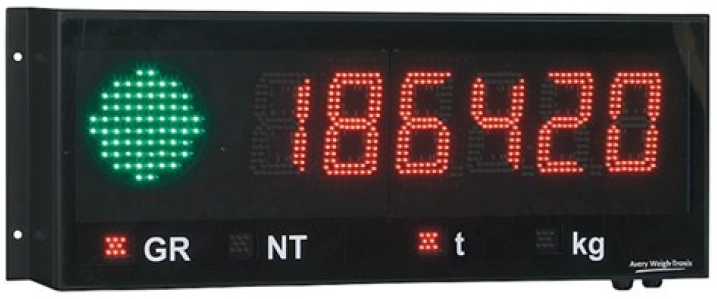

The XR Series offers a choice of four large numeric displays with 2 inch, 4.5 inch or 6.5 inch digits and two alphanumeric displays with 3.5 inch or 4 inch digits. Also available with integrated red/green traffic light. These remote displays feature highly efficient LEDs which automatically adjust in brightness to be visible in any lighting condition. Installation time is reduced by plug and play functionality while pre-installed utility programs and a wireless option simplify use further.

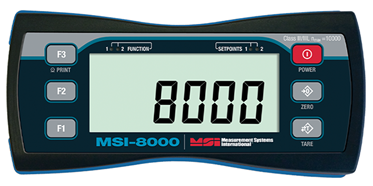

The MSI-8000 remote display makes wireless control easy with the ability to operate weighing systems from a distance. The wireless remote display can be used for viewing MSI ScaleCore-based crane scales and dynamometers, including any RF compatible MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh overhead crane scale, or MSI-7300 Dyna-Link 2 tension dynamometer. Both devices are compact and carry an RF effective range of 300 feet (line of sight) and operate on a license-free 2.4 GHz frequency. With user-friendly keypads, standard function keys for both devices include: On/Off, Zero, Tare and Print. In addition, two userdefined keys are included for peak hold, high resolution, total, view total, net/gross, and units switching. Three selectable setpoints come standard in both models, with two of the selectable setpoints utilizing the programmable user-defined keys.
Fortified by the acclaimed reputation of its star precursor, MSI-8000HD is the heavy duty version of the reputable handheld MSI-8000 RF remote display. The milled anodized aluminum, IP68-rated, enclosure is mountable in either a direct panel mount or optional tilt stand. The full waterproof construction resists most elements making it especially appealing to the petro-chemical, energy, marine and aerospace industries. Fully compatible with all MSI ScaleCore-based crane scales and dynamometers, the MSI-8000HD provides utmost versatility for any application. User-definable function keys and a bold six-digit one inch display ease usability and readability. Process control, safety and other systems benefit with optional relays installed to optimize workflow and operator ease. The MSI-8000HD meters may be used as a fully functional weigh meter with the standard inclusion of a precision 24-bit A/D. Additionally, the MSI-8000HD-2 has RF capability to transmit data to a secondary MSI-8000 or non-A/D MSI-8000HD. Wi-Fi, Ethernet or serial option cards are available for direct connections to networks and computers for advanced traceability and reporting.

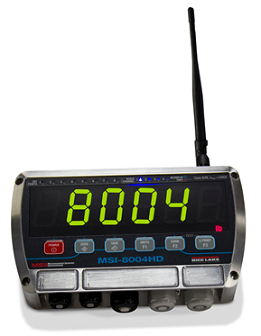

The MSI-8004HD has all of the heavy duty versatility of the MSI-8000HD with the added benefit of extreme high visibility in indoor and outdoor applications. The MSI-8004HD features 1.5-inch high characters on its LED display. The display is available in either red/green, allowing the controller to be clearly visible in many environments. The red/green display can be configured to change color based on weight and setpoint conditions, making the MSI-8004HD a natural fit for safety-critical industrial applications. The milled anodized aluminum, IP65-rated enclosure is mountable in either a direct panel mount or included tilt stand. The MSI-8004HD is highly adaptable for integration with overhead crane weighing systems, providing visibility for crane cab and floor operators. The MSI-8004HD is compatible with all MSI-ScaleCore™ crane scales, dynamometers and TranSend™ systems. The meter version can also be used with any standard load cell or scale base, supporting up to four independent measurement channels.

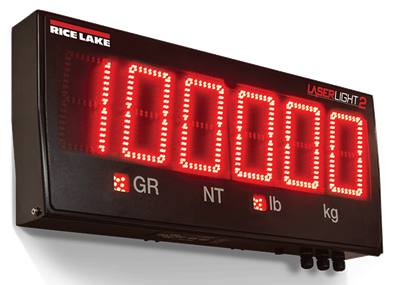

Prominently display weight, numeric data and messages with the LaserLight2 remote display. A super-bright LED display with non-glare lens provides sharp seven-segment, six-digit characters that are easy to read. Never lose visibility in dark conditions or experience wash-out in direct sunlight. Simply power up a LaserLight2 remote display in your application and the benefits are clearly visible. A redesigned enclosure provides easy access to internal components. The front panel swings open for convenient setup and service, yet is securely held in place. The weather-tight, IP66 rated enclosure provides superior protection for worry-free daily use. The external keypad makes navigating configuration options safe and easy with up, down, left and right arrow keys as well as Enter, Setup, Mode, Set and Learn buttons. Available in four-inch or six-inch character sizes, LaserLight2 remote displays include annunciators for gross, net, pounds, and kilograms.

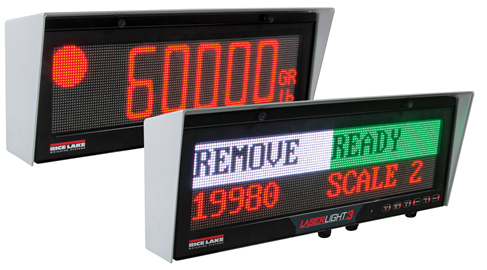

The LaserLight3 remote display has a color display with customizable messaging and versatile layout options including mirror mode, 1-line, 2-line, 4-line and quadrant formats.
