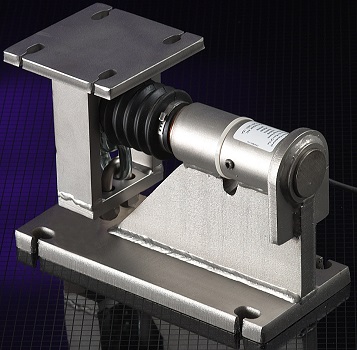

The BSS is a 350-ohm, full bridge, single-ended, cantilever type stainless steel Weigh Bar. Each Weigh Bar is mounted in a wash-through, compression, stainless steel stand. The BSS features a self-leveling chain link design, making it ideal for hoppers and silos, where vibration and off-center loading can be a problem. The chain link assemblies are also fully washdown protected, for food and chemical applications. The BSS weighbar is trade approved, for applications where product is sold by weight, and is accurate to 5,000 divisions. The BSS is sold as part of a kit which is available in capacities from 1500 lbs to 80,000 lbs. The BSS is a 350-ohm, full bridge, single-ended, cantilever type stainless steel Weigh Bar.

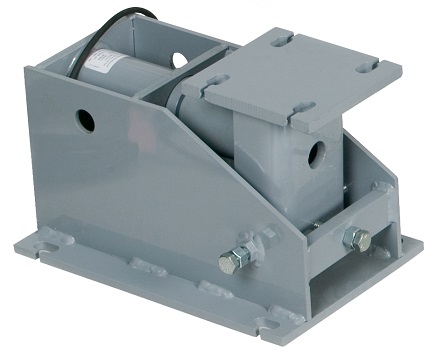

The BWB batching weighbar features a self-leveling chain link design, making it ideal for hoppers and silos, where vibration and off-center loading can be a problem. The chain link assemblies are also fully washdown protected, for food and chemical applications. The BWB is made of mild steel with epoxy paint for corrosion protection. It is sold in kits with capacities from 1500 lbs to 80,000 lbs. The BWB weighbar is trade approved, for applications where product is sold by weight, and is accurate to 5,000 divisions. The BWB batching Weigh Bar is a 350-ohm, full bridge singled ended cantilever-type Weigh Bar.

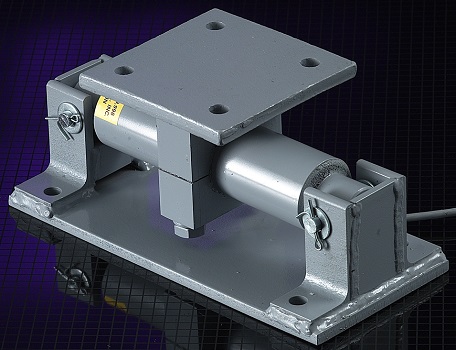

Batching Weigh Bars from Avery Weigh-Tronix convert your bin, tank or hopper into accurate, dependable scales with minimal interruption to your operations. The DEBWB is a 350 ohm, full bridge, double ended batching Weigh Bar mounted in a bracket assembly. The DEBWB made of mild steel finished with epoxy paint for corrosion protection. They are available in kits with capacities from 750 lbs to 400,000 lbs. It is not approved for trade by weight and comes with a 0.25% accuracy rating. The DEBWB features a self-leveling chain link design, making it ideal for hoppers and silos, where vibration and off-center loading can be a problem. The chain link assemblies are also fully washdown protected, for food and chemical applications.
Batching Weigh Bars from Avery Weigh-Tronix convert your bin, tank or hopper into accurate, dependable scales with minimal interruption to your operations. The HSWB is a 350-ohm, full bridge, singled ended Weigh Bar for use in applications where the hopper is suspended. It is mounted in a bracket assembly and covered, with chain links connected to the Weigh Bar. The HSWB Weigh Bar is trade approved, for applications where product is sold by weight and is accurate to 5,000 divisions. The HSWB is available in capacities from 5,000 lbs to 20,000 lbs. The HSWB weighbar is made of mild steel with epoxy paint for corrosion resistance.

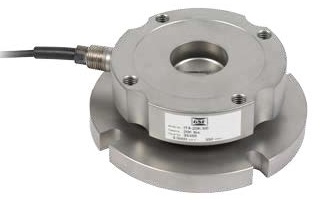

The ITA is a self-contained, low profile weighing assembly with an integrated load cell and mounting assembly for tank weighing. The ITA’s durable, stainless steel welded construction prevents intrusion from moisture or chemicals, providing years of service in the most severe environments. Integral to the ITA design is its uplift restraint and side load protection which eliminates the need for check rods or stabilizing hardware in most applications. The ITA is available in medium duty capacities from 1,000 lbs to 125,000 lbs.

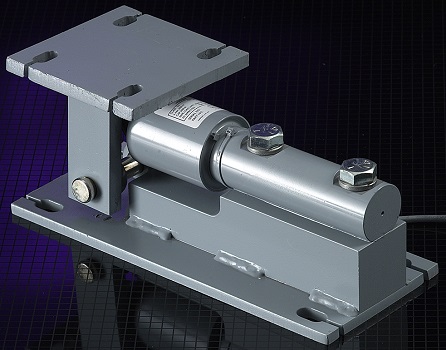

The LPBWB is a 350-ohm, full bridge, singled ended Weigh Bar, designed for applications with minimal space for the weight sensor. It is fabricated from aircraft-quality steel alloy and carbon steel and finished with epoxy paint to ensure longevity even in hostile environments. The HSWB Weigh Bar is trade approved, for applications where product is sold by weight and is accurate to 5,000 divisions. The LPBWB is sold as part of a kit. The kits are available in capacities from 375 lbs to 40,000 lbs.
