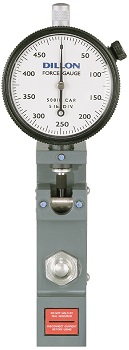

The Model U Force Gauge is an accurate (±1% of full range) mechanical compression measurement instrument. Its slim-line design has repeatedly proven valuable in installations where space is at a premium. The versatility of this simple instrument is demonstrated by the fact that it can be used as a hand-held device, permanently mounted on a flat surface plate, or used in test fixtures. The Dillon Model U Force Gauge employs a deflection beam machined from aircraft quality alloy steel and heat treated to develop optimum strength and spring characteristics. A precision dial indicator is mounted at the null point of this beam. Compression force is normally applied against a single pressure fitting mounted on the upper half of the beam. When load is exerted, the beam moves downward causing a slanted anvil on the free end to push against the indicator plunger. The indicator reading is a direct representation of the applied load. U Force Gauges are available for measurement in pounds or kilograms.

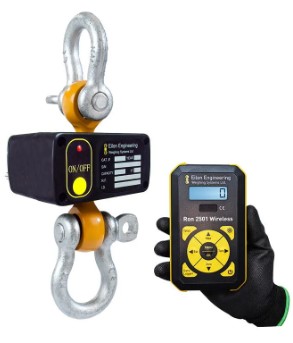

The Ron 2501 is an exceptionally small, light and advanced wireless dynamometer with long range and built in transmission verification mechanism. Special perpendicular design neutralizes bending of the load cell, increasing accuracy and safety. Featuring fatigue rated load cells with high accuracy (0.1% of full scale), the small dimensions of this wireless dynamometer ensure low headroom loss and portability. The Ron 2501 wireless dynamometer features an exceptionally long battery life: up to 2000 hours or 4000 hours (with added option) on AA disposable batteries. Ron 2501 wireless load cells can be purchased as part of a multi-point system capable of collecting measurement from up to 200 load cells. Ron Crane Scales and dynamometers are made of high quality aerospace steel and electronics are installed dampening mounts, for increased durability, making the Ron 2501 suitable for harsh environment applications. Ron 2501 is available with advanced options for communication with additional display as well as logging and downloading of measurements.

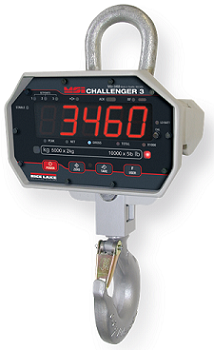

The MSI-3460 with ScaleCore measurement module provides industry-leading weighing features of previous Challenger designs plus much more. Long-range viewing is enhanced with a larger 1.5 inch (38 millimeter) ultra-bright LED digital display and resolution settings of up to 10,000 divisions for precise 0.1 percent loading accuracy. Product operating time is extended to over 80 plus hours with a single six-volt rechargeable battery. The original signature Challenger packaging has been upgraded to NEMA Type 4/IP65 levels. Manufactured in the USA in strict compliance with the highest safety standards, Challenger continues to sustain a minimum 200 percent safe and 500 percent ultimate load ratings.

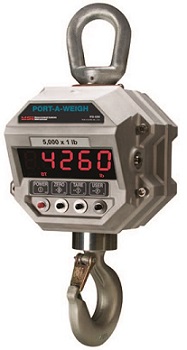

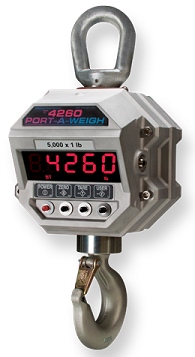

After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with ScaleCore technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions. For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 meets or exceeds all industrial safety requirements, including OSHA, ANSI and ASME and is an economical choice for many bridge crane, foundry, and in-process material handling needs.
After three decades of production, added advancements, and thousands of worldwide installations, the next generation Port-A-Weigh embedded with ScaleCore technology continues to reign as the industry standard. Along with Port-A-Weigh, the MSI product offering features the most comprehensive line of industrial crane scales and specialized overhead weighing solutions. For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 meets or exceeds all industrial safety requirements, including OSHA, ANSI and ASME and is an economical choice for many bridge crane, foundry, and in-process material handling needs.

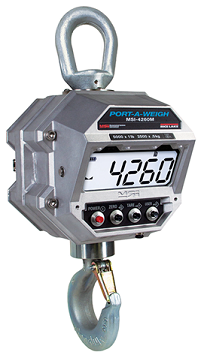

For medium- to heavy-capacity needs, the MSI-4260M has an established reputation as the industry standard in overhead weighing. The MSI-4260M Port-a-Weigh crane scale captures weight with ± 0.1% accuracy through its full range of capacity starting at 500 pounds up to 100,000 pounds. The MSI-4260M is built to perform reliably and offers two standard battery options: six (6) D-Cell batteries or a 12V sealed lead acid (SLA) battery. Timed auto-off and auto-sleep modes conserve power when the unit is not in use, meaning it is always ready for the job. With an IP66 aluminum enclosure, it keeps dust out and withstands high-pressure water. Sensitive electronic components are sealed off and well-protected, including the MSI-4260M’s sleek and vibrant LCD display. Featuring programmable brightness control, the display ensures users have access to the weight data they need in any light condition.
